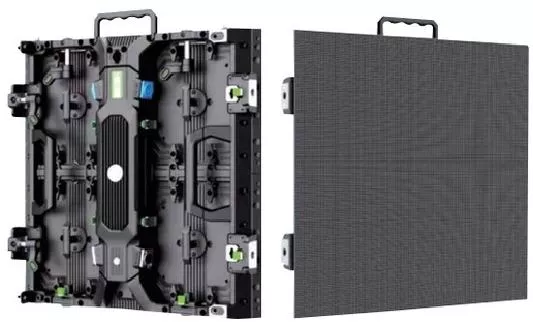

Rental LED DisplayRental LED display for stages, events, concerts and corporate productions

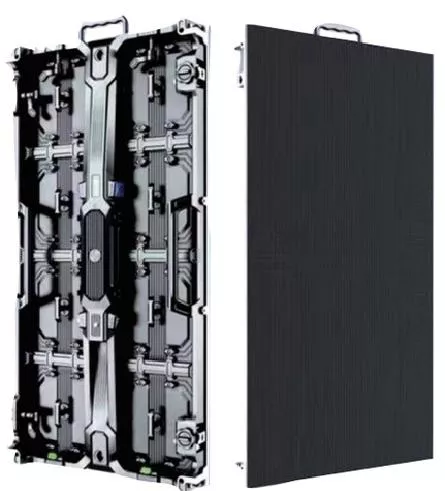

Flexible & Creative LED DisplayFlexible and creative LED display for curved, shaped and custom installations
Indoor LED DisplayIndoor LED display for retail, conference rooms and commercial spaces

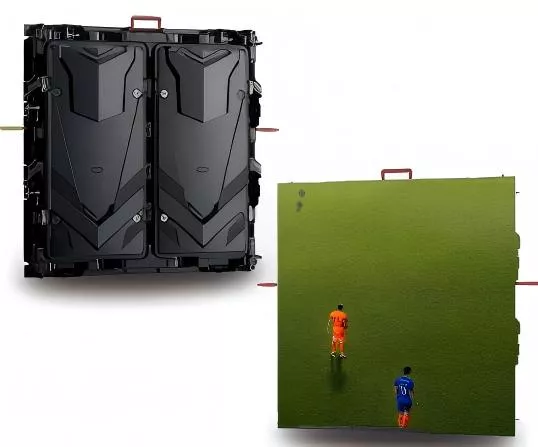

Outdoor LED DisplayOutdoor LED display for advertising billboards, stadiums and public spaces
Transparent LED DisplayTransparent LED display for shop windows, glass facades and commercial installations
AEVZO provides LED display solutions for integrators, distributors and project contractors worldwide.
Based in Shenzhen, China, we focus on indoor, outdoor, rental, fine-pitch, flexible and creative LED displays for commercial, retail, entertainment and event applications.
From product selection and customization to project support, we help our partners deliver reliable LED display solutions for different project requirements.

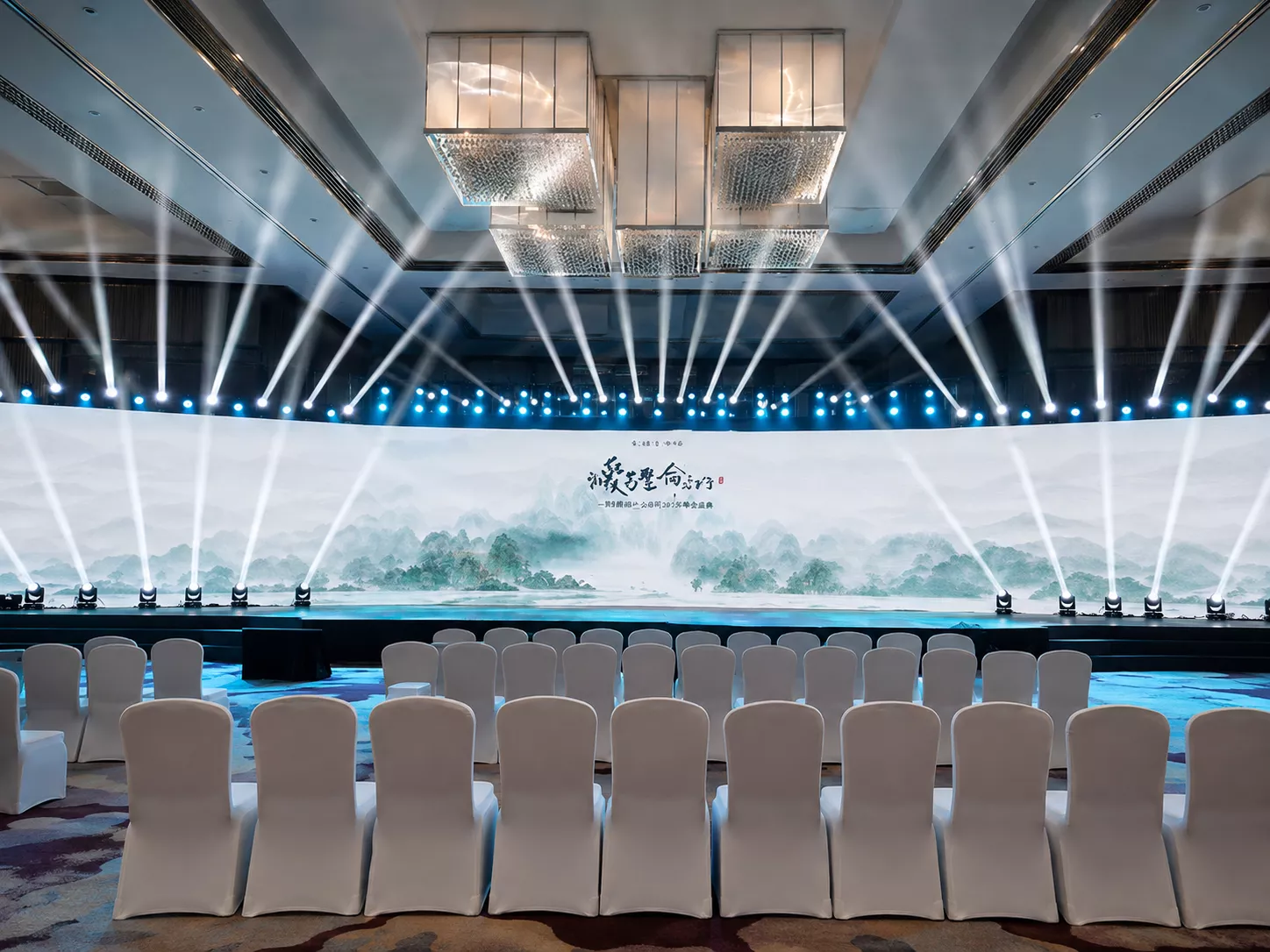

PROJECT 02 — HUNAN CORPORATE ANNUAL GALA RENTAL LED STAGE
Location: Hunan, China
Application: Corporate annual gala and live event
Display system: Ultra-wide modular rental LED stage backdrop with synchronized moving-head lighting
Visual style: Panoramic Chinese ink-wash content with an immersive wide-format presentation
Pixel pitch: P3.91
Surface protection: GOB protective coating for enhanced impact and collision resistance
Cabinet size: 500×500 mm and 500×1000 mm
Module size: 250×250 mm
Cabinet material: Die-cast aluminum
Refresh rate: ≥3840 Hz
Brightness: 1,000–1,500 nits for indoor event use
Viewing angle: 140° horizontal / 140° vertical
Maintenance: Front and rear service
Installation: Ground stacking or hanging
Key features: GOB anti-collision protection, quick locks, lightweight cabinets, mixed cabinet configuration and flight-case transport
PROJECT OVERVIEW
The ultra-wide LED backdrop formed the main visual center of the annual gala. Its panoramic format provided a continuous canvas for corporate content, ceremony visuals and live-event programming, while the coordinated lighting system extended the visual atmosphere across the venue.
PROJECT HIGHLIGHTS
The screen configuration supported a contemporary immersive stage design with a wide viewing area, uniform image presentation and strong integration between LED content and stage lighting. The modular rental structure supports fast installation, dismantling, transport and repeated event use.

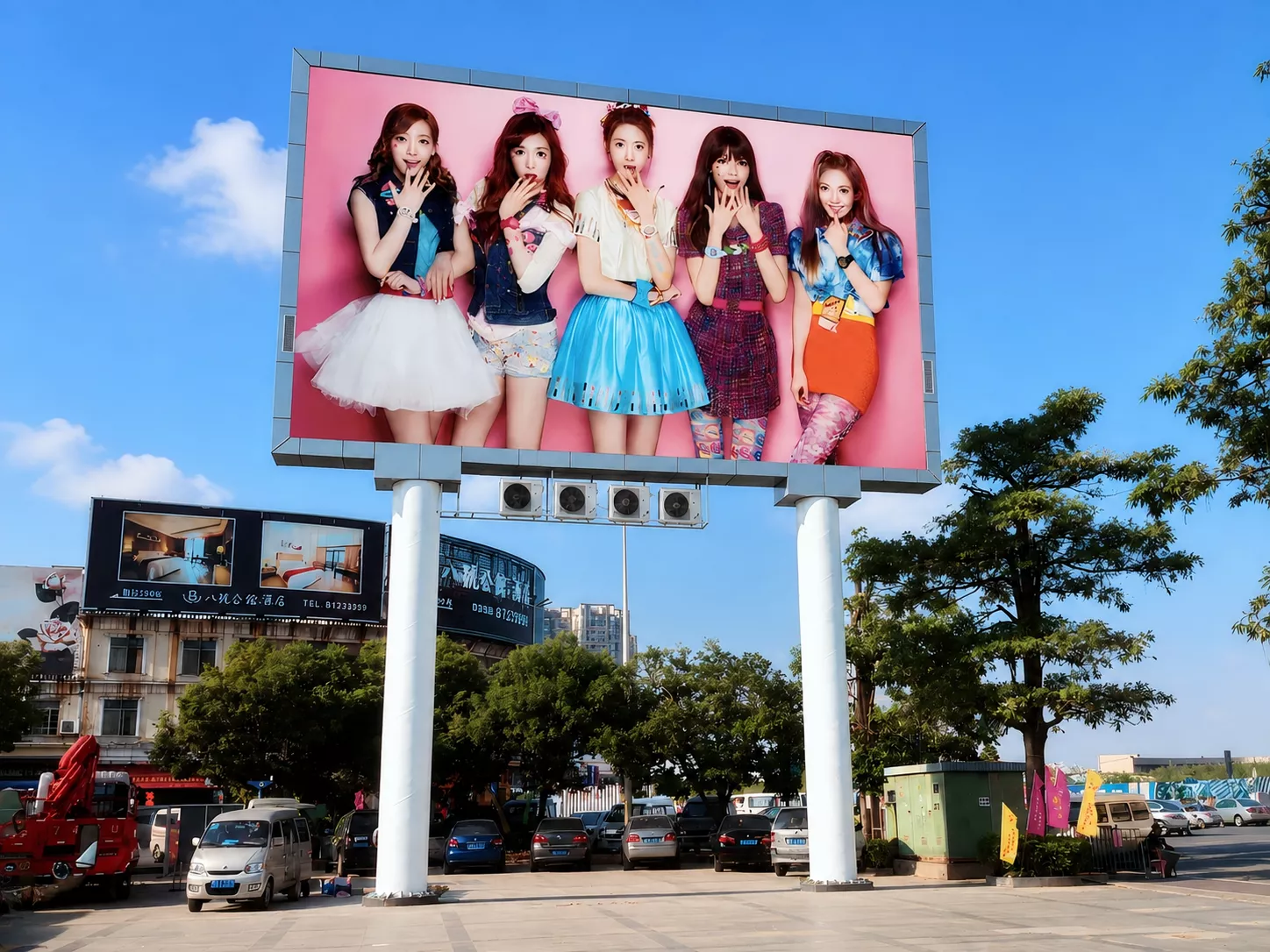

PROJECT 03 — DONGGUAN COMMERCIAL PLAZA
DOUBLE-COLUMN OUTDOOR LED BILLBOARD
Location: Dongguan, Guangdong, China
Application: Commercial plaza outdoor advertising
Product type: Outdoor fixed LED display
Pixel pitch: P10
Screen display size: 10,560 × 5,920 mm
Display area: Approximately 62.52 m²
Display resolution: 1,056 × 592 pixels
Installation: Freestanding double-column steel structure
KEY SPECIFICATIONS
LED type: Outdoor SMD3535
Common module size: 320 × 160 mm
Brightness: ≥6,500 nits
Refresh rate: ≥3,840 Hz
Protection: IP65 front / IP54 rear
Viewing angle: 140° horizontal / 120° vertical
Maintenance: Rear service
Brightness control: Manual and automatic light-sensor adjustment
Operating temperature: -20°C to +50°C
Typical power consumption: Approximately 250–300 W/m²
Maximum power consumption: Approximately 700–800 W/m²
PROJECT OVERVIEW
The large-format P10 outdoor LED billboard was installed on a double-column structure at a commercial plaza in Dongguan. The elevated design provides long-distance visibility while preserving circulation and usable space beneath the display.
PROJECT HIGHLIGHTS
High outdoor brightness supports clear daytime advertising, while the weather-resistant structure is designed for continuous commercial operation. The P10 configuration provides an effective balance of viewing distance, display area and project cost for large outdoor advertising applications.
