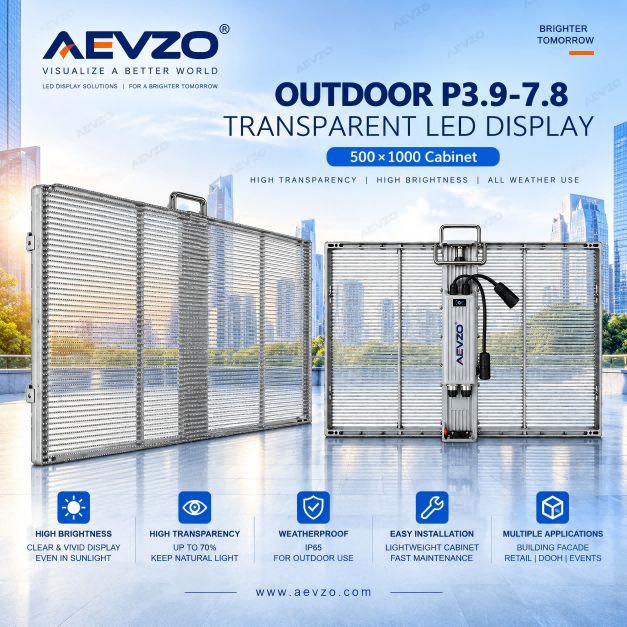

Outdoor P3.9-7.8 Transparent LED Display - 500x1000 Cabinet

Designed for glass facades, retail windows and commercial buildings, this transparent LED display combines high visual impact with a lightweight 500 x 1000 mm cabinet. The display allows the space behind the screen to remain visible while dynamic content is presented on the glass area.

KEY SPECIFICATIONS

- Pixel pitch: 3.9-7.8 mm

- LED package: SMD1921, 1R1G1B

- Pixel density: 32,768 pixels/m2

- Unit board size: 500 x 125 mm

- Unit board resolution: 128 x 16 pixels

- Cabinet size: 500 x 1000 mm

- Cabinet resolution: 128 x 128 pixels

- Unit boards per cabinet: 8

- Scan mode: 1/8 scan

- Refresh rate: >=3840 Hz

- Frame rate: >=60 Hz

- Brightness: 4000 cd/m2

- Gray scale / color: 14-bit / 16.7 million colors

- Viewing angle: 120° +/-10°

- Cabinet weight: 14 kg

- Maximum power: 320 W per cabinet

- Average power: 110 W per cabinet

- Input voltage: DC 5 V

- Operating voltage: AC 220 V +/-15%

- Receiving card: NovaStar A5s Plus with adapter board

- Operating temperature: -20°C to +45°C

- Storage temperature: -30°C to +60°C

- Relative humidity: 10%-95%

- Rated service life: 100,000 hours

APPLICATIONS

Retail storefronts, shopping malls, glass curtain walls, airports, automotive showrooms, corporate exhibition spaces, hotels and commercial building facades.

PURCHASING INFORMATION

For an accurate quotation, please provide the glass opening width and height, viewing distance, installation environment, required transparency, content source, quantity and delivery country. Structural drawings, power distribution, control system and spare parts are configured according to the confirmed project.

Note: Product specifications are reference values from the supplied technical document. Final values are subject to the confirmed LED configuration and order specification.
